Single interface light detector is used to detect the interface of infusion bag, connected with the host, high efficiency, stability

Name: Single interface light detector is used to detect the interface of infusion bag connected with the host high efficiency stability
Brand: SENCAN
Price: 1 USD

Brand Name : SENCAN

Model Number : SC-PT-431

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 3 sets per month

Delivery Time : 3-4 months

Packaging Details : wooden box

Applicable products : Infusion bag single interface

Name : image inspection machine

qualified rate : 98%

Material : Stainless steel

Main power : Servo motor + indexing drive

Contact Now

Technical Description.
Output:390-400pcs per minute, including 1 set of image inspection mainframe, 1 set of vibrating disk, 1 set of loading machine

Products from the distribution tray over to the glass plate --- products through the guide mechanism, and then detect the product to take the signal --- 360
degree image inspection of the product + front side inspection (5 cameras) --- image from bottom to top inspection of the product (1 camera) --- image from top to top inspection of the product (1 camera)
(1 camera) --- Image from top to bottom inspection products (1 camera) --- out of good products --- defective products

Features

For products requiring appearance check, physical inspection, replace traditional artificial eyesight inspection.
Inspection scope: insufficient injection molding (lack of material), injection deformation, injection molding bubbles, foreign bodies on surface exceed 0.3mm, missing parts, incorrect assembly, inaccurate location of parts, assembly deformation.
Automatic feeding, high-speed 360 degrees’ inspections without blind angle, automatic elimination of dirty products.
Conveyor belt exit can be equipped with electrostatic removal device.
Parts and control mode meet GMP requirements for pharmaceutical packaging material production.
PLC automatic control system. Touch screen HMI operation.

Properties

Applicable products	All products requiring appearance inspection
Production speed	15000-20000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depends on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 2kw, compressed air:7kg/m³
Dimension	Actual size varied with different production speed
Weight	1000kg
Operator	1 set/person

Cheap Single interface light detector is used to detect the interface of infusion bag, connected with the host, high efficiency, stability for sale

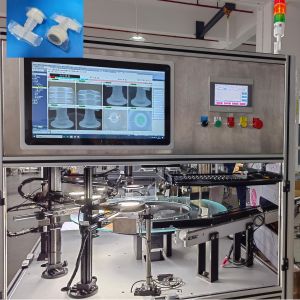

Single interface light detector is used to detect the interface of infusion bag, connected with the host, high efficiency, stability Images
